TRACTOR GRADING BLADE

FEATURES



The Roadrunner’s dual blade configuration, side pans, and working weight provide maximum advantages for gravel road maintenance. The grader fills potholes that stay filled longer, eliminates washboarding, does not leave windows but leaves the material directly behind the grader. The Roadrunner blade can maneuver in and out of tight corners and pivot within a narrow space that would be impossible for large motor graders.

CH and CJ models attach to a Category I and II 3-point hitch. BH and BJ models attach to a 3-point hitch. All four tractor grader blade models feature dual blade configuration with dual 5/8″ bolt-on standard motor grader edges, side panels with replaceable skid bars fabricated from hardened AR plate.

Independent grading height adjustment on each side allows you to easily create or maintain a crown.

On our tractor grader blade models, the grading height is fully adjustable. Our cutting edges are top-punched so that the top of the blade (not the center) attaches to the mold board. Thus as the blade wears, the operator can simply adjust the depth of cut to maintain the grading height and can get the full wear out of the blade without having to reverse it.

CH and BH models have hydraulic depth adjustment, which controls the lead cutting edge and manual screw jacks that control the trailing edge. CJ and BJ models have manual depth adjustment.

When choosing your grader width, we recommend the overall width of the grader to exceed the tractor/skid steer width by at least 12 inches if possible. Our serrated edges enhance the ability to breakup hard packed materials.

All replacement parts are in stock and can ship within 2 business days.

Ready to see the tractor grader in action or purchase one for yourself?

CH THREE POINT GRADER

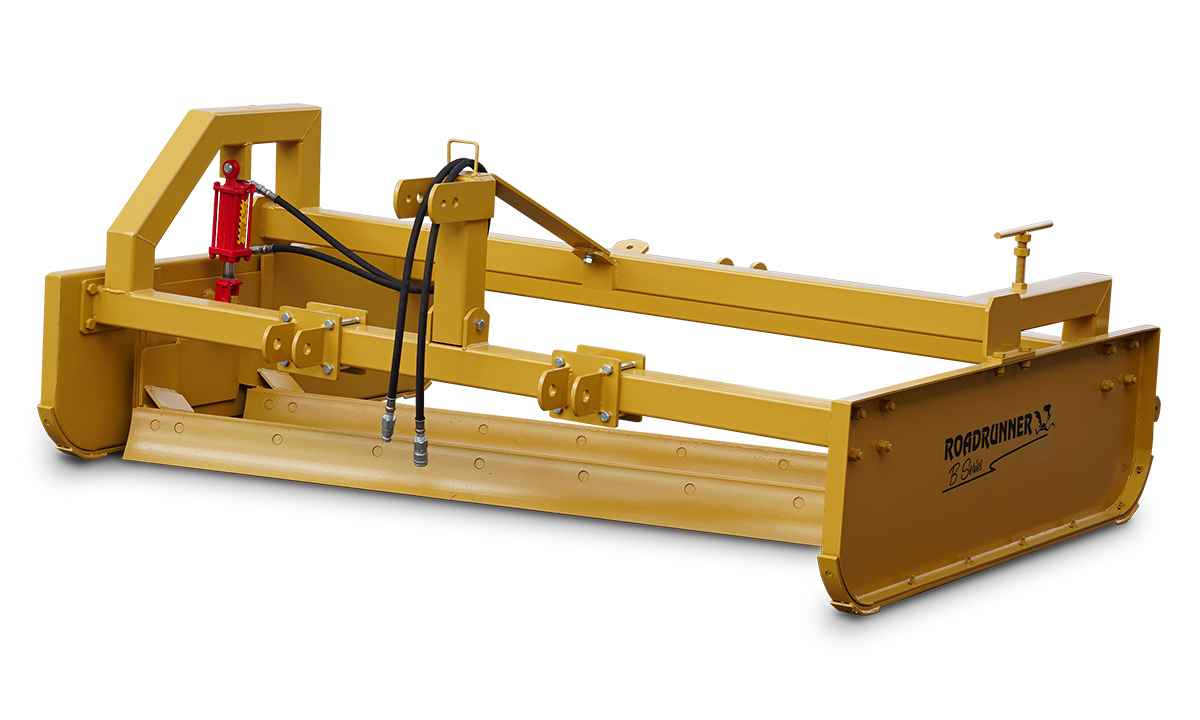

BH TRACTOR GRADER

CH THREE POINT / SKID STEER COMBO GRADER

  • Combo unit comes with both tractor 3-point and skid-steer attachment
  • Available in hydraulic depth adjustment or manual depth adjustment

BH TRACTOR GRADER WITH ROLLER OPTION

The roller attachment is available for both the “B” and “C” series tractor grader. The roller option is a great addition if you are looking to do any type of fine grading, top soiling leveling, or compacting of finer materials.

Learn More

To learn more about our Tractor Grading Blade and our other grading products, Download Our Guide to All Our Graders.

BJ SERIES WEIGHTS AND DIMENSIONS

(Manual depth adjustment)
Blade Width – Weight – Width – Length – Height
7′ – 1,375 lbs – 7′ 4″ – 6′ – 20″
8′ – 1,500 lbs – 8′ 4″ – 6′ – 20″

BH SERIES WEIGHTS AND DIMENSIONS

(Hydraulic depth adjustment)
Blade Width – Weight – Width – Length – Height
7′ – 1,435 lbs – 7′ 4″ – 6′ – 20″
8′ – 1,560 lbs – 8′ 4″ – 6′ – 20″

Dual hydraulic cylinders for depth adjustment available on special order. Roller option available on BJ & BH series.

CJ SERIES WEIGHTS AND DIMENSIONS

(Manual depth adjustment)
Blade Width – Weight – Width – Length – Height
6 – 1,115 lbs – 6′ 4″ – 5′ 6″ – 17″
7′ – 1,200 lbs – 7′ 4″ – 5′ 6″ – 17″
8′ – 1,285 lbs – 8′ 4″ – 5′ 6″ – 17″

CH SERIES WEIGHTS AND DIMENSIONS

(Hydraulic depth adjustment)
Blade Width – Weight – Width – Length – Height
6′ – 1,150 lbs – 6′ 4″ – 5′ 6″ – 17″
7′ – 1,250 lbs – 7′ 4″ – 5′ 6″ – 17″
8′ – 1,350 lbs – 8′ 4″ – 5′ 6″ – 17″

Dual hydraulic cylinders for depth adjustment available on special order.
Roller option available on both CJ & CH series.
CJ & CH series are also available as a combination 3-point/skid steer unit.

DOWNLOAD THE SELL SHEET

CUSTOMER REVIEWS

"The grader is working very well for our family. We have a very long gravel driveway. I am 42 years old. Throughout my youth, I spent many days filling potholes and dressing/maintaining the same piece of road. The Roadrunner saves a lot of time and effort. It does a fantastic job. I frequently express, to my parents, how welcome the implement would've been had it been available when I was very young. I work for a fire department here in central Virginia. A lot of my fellow employees have a business on the side, usually involving landscaping or property improvements. I recommend your product with the highest praise and support. Thank you for your service and product. Please express our gratitude to your family and your employees for the workmanship and quality of a fine piece of equipment."

- Doug Renn, Prince George, Virginia

"I REALLY like the grader. I have only done about 3 miles of road with it so far, and it performed totally as you said it would — the scarifying/serrated blade really worked great on the roads with grass growing up in it. After going over them once or twice, the grass totally disappeared. With the hydraulic cylinder on the one side, it was easy to put a crown on the roads, and for cutting in a daylight ditch on the side of the road. I have not had a chance to use the 3-point yet. I have only used it on the Cat skid-steer, which it worked great with. I cannot say enough good about it and after doing research for quite a bit with your competitors, I am VERY happy I chose your product. I will be working with it this coming year, and if I run into anything I feel could be changed, I will let you know. THANK YOU once again for your GREAT service and help in this purchase."

- Jack C. Carder

"With the frozen ground, I have really had only one weekend that I had a chance to use it, and the ground was more wet than would be ideal, as it didn't want to waterfall over the blades but instead stick. With that being said, using it in less than optimal conditions, it is absolutely better than I had ever dreamt it to work. My potholes are gone, and there were a lot of huge ones on my 3/4-mile driveway. Everyone that comes over can't believe how nice the driveway is. I can't wait to use it in optimal conditions. Thanks for making a true quality American-made piece of equipment."

- Jon

"We love it. Can't beat it for the money. Thanks!"

- John Canto

"I am so glad we purchased the trench paver; it worked out better than I had expected. As with everything, you have some fine-tuning, but the results are excellent. I highly recommend this to anyone that wants to do small patching. We set it up around 4-feet wide and build up the edge of the road and smooth out the wheel ruts. It works excellent!"

-Tom Shafer, Greenfield Twp Road Supervisor

"I am thrilled with the Roadrunner. I maintain roughly a mile of dirt and gravel paths. I found I can achieve better results in about 1/3 the time it took with my box blade. It is a great and rugged product."

- Jeff Hines
